- ABI
EXIS
ATMS
CRiS
CERES
MODIS
etc.
Remote Sensing C
-
- Member
- Posts: 27
- Joined: Wed Jan 03, 2018 1:36 pm
- Division: Grad
- State: NY
- Has thanked: 0
- Been thanked: 2 times
Re: Remote Sensing C
Is it important to know in-depth information on the instruments on the listed satellites:
Columbia University. Maybe starting an invitational. No promises.
alchzh's Userpage
alchzh's Userpage
-
- Exalted Member
- Posts: 326
- Joined: Sun Mar 12, 2017 7:42 pm
- Division: Grad
- State: NJ
- Has thanked: 1 time
- Been thanked: 0
Re: Remote Sensing C
MODIS, CERES, AMSR2, AMSR-E, MSS, ETM+, and CALIOP are the instruments I most commonly see on tests. Generally, they will only ask for detailed information on the EOS satellites, especially the A-train ones. I've never heard of some of the ones you brought up. Maybe I should
For the large part, know how many bands each has, their resolutions, and what spectral regions they image in. For example, ETM+ has 8 bands, 6 general all-purpose bands across visible and infrared, one band measuring specifically cirrus clouds, and one panchromatic band. Each has a 30m resolution except for the panchromatic band, which is twice as resolved.
EDIT: just realized having a 15m squares makes the instrument four times as resolved.

For the large part, know how many bands each has, their resolutions, and what spectral regions they image in. For example, ETM+ has 8 bands, 6 general all-purpose bands across visible and infrared, one band measuring specifically cirrus clouds, and one panchromatic band. Each has a 30m resolution except for the panchromatic band, which is twice as resolved.
EDIT: just realized having a 15m squares makes the instrument four times as resolved.
WEST WINDSOR-PLAINSBORO HIGH SCHOOL SOUTH '18
EMORY UNIVERSITY '22
SONT 2017 5th Place Medalist [Microbe Mission]
"One little Sciolyer left all alone,
He went out and hanged himself and then there were none."
Congratulations to WW-P South/Grover for winning 2nd/1st place at NJ States!
EMORY UNIVERSITY '22
SONT 2017 5th Place Medalist [Microbe Mission]
"One little Sciolyer left all alone,
He went out and hanged himself and then there were none."
Congratulations to WW-P South/Grover for winning 2nd/1st place at NJ States!
-
- Member
- Posts: 27
- Joined: Wed Jan 03, 2018 1:36 pm
- Division: Grad
- State: NY
- Has thanked: 0
- Been thanked: 2 times
Re: Remote Sensing C
I was looking a stuff based on the rules manual for this year mostly (mentioned satellites are GOES-16, NPP, Terra (well, MODIS), CALIPSO, CloudSat, OCO-2, Aura, TOPEX/Poseidon, Jason-1, Jason-3). Do they regularly test on other satellites and instruments?whythelongface wrote:I've never heard of some of the ones you brought up. Maybe I should
EDIT: GOES-16 is pretty recent (operational as of 2.5 ago)
Columbia University. Maybe starting an invitational. No promises.
alchzh's Userpage
alchzh's Userpage
-
- Member
- Posts: 220
- Joined: Sun Apr 10, 2016 5:44 am
- Division: Grad
- State: NJ
- Has thanked: 1 time
- Been thanked: 3 times
Re: Remote Sensing C
I honestly don't know how it will be this year, since the list of satellites changed, but I think in the past Landsat and a couple of the most important ones would come up even if they weren't listed, and more satellites come up in, like, multiple choice questions about what they do, than show up in image analysis, so maybe knowing basic information about more satellites than is specifically given on the rules could be a good idea?alchzh wrote:I was looking a stuff based on the rules manual for this year mostly (mentioned satellites are GOES-16, NPP, Terra (well, MODIS), CALIPSO, CloudSat, OCO-2, Aura, TOPEX/Poseidon, Jason-1, Jason-3). Do they regularly test on other satellites and instruments?whythelongface wrote:I've never heard of some of the ones you brought up. Maybe I should
WWP South, graduated 2018
Current undegrad in physics @Oxford University
Current undegrad in physics @Oxford University
-
- Exalted Member
- Posts: 326
- Joined: Sun Mar 12, 2017 7:42 pm
- Division: Grad
- State: NJ
- Has thanked: 1 time
- Been thanked: 0
Re: Remote Sensing C
Also, GOES-16 is known as GOES-EAST now. It's how I get all my pretty pictures of the winter storm I sat through today.

Edit: I'm referring to the explosive extratropical cyclone in the upper right portion of the image.

Edit: I'm referring to the explosive extratropical cyclone in the upper right portion of the image.
WEST WINDSOR-PLAINSBORO HIGH SCHOOL SOUTH '18
EMORY UNIVERSITY '22
SONT 2017 5th Place Medalist [Microbe Mission]
"One little Sciolyer left all alone,
He went out and hanged himself and then there were none."
Congratulations to WW-P South/Grover for winning 2nd/1st place at NJ States!
EMORY UNIVERSITY '22
SONT 2017 5th Place Medalist [Microbe Mission]
"One little Sciolyer left all alone,
He went out and hanged himself and then there were none."
Congratulations to WW-P South/Grover for winning 2nd/1st place at NJ States!
-
- Member
- Posts: 27
- Joined: Wed Jan 03, 2018 1:36 pm
- Division: Grad
- State: NY
- Has thanked: 0
- Been thanked: 2 times
Re: Remote Sensing C
I don't think the test writers would be so troll to call it "GOES-East" instead of "GOES-16" in referring to the satellite or "GOES-R" in referring to the instumentation on the entire series (maybe as its position or something)whythelongface wrote:Also, GOES-16 is known as GOES-EAST now
EDIT: GOES-R is the series (satellite should now be called GOES-16)
Last edited by alchzh on Thu Jan 04, 2018 8:11 pm, edited 1 time in total.
Columbia University. Maybe starting an invitational. No promises.
alchzh's Userpage
alchzh's Userpage
-
- Member
- Posts: 220
- Joined: Sun Apr 10, 2016 5:44 am
- Division: Grad
- State: NJ
- Has thanked: 1 time
- Been thanked: 3 times
Re: Remote Sensing C
Agreed, GOES-East is a position more than a satellite, and the past referred to GOES-13 rather than 16, so talking about the satellite I think they'd generally still use GOES-16.alchzh wrote:I don't think the test writers would be so troll to call it "GOES-East" instead of "GOES-16" in referring to the satellite or "GOES-R" in referring to the instumentation (maybe as its position or something)whythelongface wrote:Also, GOES-16 is known as GOES-EAST now
WWP South, graduated 2018
Current undegrad in physics @Oxford University
Current undegrad in physics @Oxford University
-
- Member
- Posts: 110
- Joined: Wed Jan 18, 2017 6:57 pm
- Division: C
- Has thanked: 0
- Been thanked: 0
Remote sensing question
Can anyone briefly explain why longer waves generally penetrate objects more and shorter waves don't penetrate objects as well as longer waves?
The biologist speculates, "What's the meaning of life?"
The physicist asks, "In the universe, does matter really matter?"
The chemist replies, "I shall find solutions to both questions."
The physicist asks, "In the universe, does matter really matter?"
The chemist replies, "I shall find solutions to both questions."
-
- Member
- Posts: 220
- Joined: Sun Apr 10, 2016 5:44 am
- Division: Grad
- State: NJ
- Has thanked: 1 time
- Been thanked: 3 times
Re: Remote Sensing C
I had a long, irrelevant, not very clear explanation but then I saw the word briefly, so anyway.geniusjohn5 wrote:Can anyone briefly explain why longer waves generally penetrate objects more and shorter waves don't penetrate objects as well as longer waves?
That's not always the case (think x-rays, think blue penetrating ocean water more than red, etc), and although I think there is some explanation for that trend being true some places, I would just say it depends on what object you're trying to look through and what you're looking for, there will be certain wavelengths that are absorbed by each of the substances and certain wavelengths which are not.
WWP South, graduated 2018
Current undegrad in physics @Oxford University
Current undegrad in physics @Oxford University
-
- Member
- Posts: 25
- Joined: Sun Feb 15, 2015 10:55 am
- Division: Grad
- State: PA
- Pronouns: He/Him/His
- Has thanked: 2 times
- Been thanked: 0
Re: Remote sensing question
Warning: This might be way off base, if someone else can provide a better answer please do.knottingpurple wrote:I had a long, irrelevant, not very clear explanation but then I saw the word briefly, so anyway.geniusjohn5 wrote:Can anyone briefly explain why longer waves generally penetrate objects more and shorter waves don't penetrate objects as well as longer waves?
That's not always the case (think x-rays, think blue penetrating ocean water more than red, etc), and although I think there is some explanation for that trend being true some places, I would just say it depends on what object you're trying to look through and what you're looking for, there will be certain wavelengths that are absorbed by each of the substances and certain wavelengths which are not.
Not sure whether or not you've taken chemistry or physics, if not then you should look into how exactly absorption of photons works.

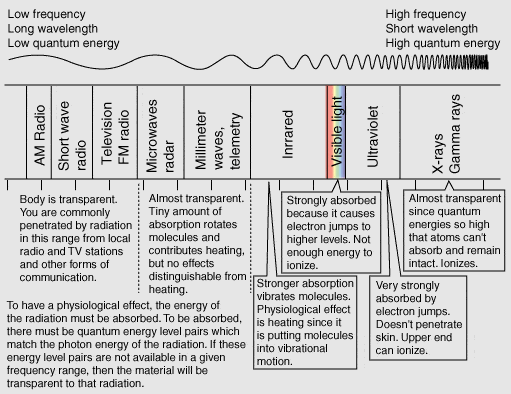

Now to answer your question. Differences in energy levels of electrons most often fall around the "middle" of the spectrum meaning that those wavelengths are the ones most often absorbed. This means that I believe that longer wavelengths should not necessarily have more penetrating power, it is just that the middle of the spectrum has the least penetrating power. This diagram from http://www.hyperphisics.com represents it nicely.
Other aspects of beam attenuation such as different light-matter interactions which occur at different energies also have an effect I'm sure, but I think those are more minor issues.
tl;dr Extremes of the spectrum on either side have the highest penetrating power, the middle hast the lowest.
